Mobile Service Extensions

Implement the iOS and Android notification service extensions in your app.

Overview

Notification Service Extensions let you intercept and modify push notifications before it’s displayed to the user. This enables:

• Background data handling
• Custom styles (colors, icons, vibration)
• Rich media attachments (images, videos)
• Confirmed delivery/analytics
• Action button options

You can access the data in your push notifications sent from OneSignal via the OSNotification class

---

Android Notification Service Extension

Allows you to process the notification before it is shown to the user. Common use cases include:

• Receive data in the background with or without displaying a notification.
• Override specific notification settings depending on client side app logic such as custom accent color, vibration pattern, or other any other NotificationCompat options available.

For more details, see Android’s documentation on the NotificationCompat options.

1. Create a class for the Service Extension

Create a class that extends INotificationServiceExtension and implement the onNotificationReceived method.

The method onNotificationReceived parameter is event of type INotificationReceivedEvent .

Java

package your.package.name

import androidx.annotation.Keep;
import com.onesignal.notifications.IActionButton;
import com.onesignal.notifications.IDisplayableMutableNotification;
import com.onesignal.notifications.INotificationReceivedEvent;
import com.onesignal.notifications.INotificationServiceExtension;

@Keep // Keep is required to prevent minification from renaming or removing your class
public class NotificationServiceExtension implements INotificationServiceExtension {

   @Override
   public void onNotificationReceived(INotificationReceivedEvent event) {
      IDisplayableMutableNotification notification = event.getNotification();

      if (notification.getActionButtons() != null) {
         for (IActionButton button : notification.getActionButtons()) {
            // you can modify your action buttons here
         }
      }

   /* Add customizations here. See examples below for additional methods to modify the notification*/
   }
}

2. Example use cases

The following are common examples you can implement in the template Notification Service Extension class above.

Prevent notification from displaying

Java

event.preventDefault();

//Do some async work, then decide to show or dismiss
new Thread(() -> {
    try {
        Thread.sleep(1000);
    } catch (InterruptedException ignored) {}

    //Manually show the notification
    event.getNotification().display();
}).start();

3. Add the Service Extension to your AndroidManifest.xml

Add the class name and value as meta-data within the AndroidManifest.xml file in the application tag. Ignore any “unused” warnings.

XML

<application>
  <!-- Keep android:name as shown, set android:value toyour class fully name spaced-->
  <meta-data
    android:name="com.onesignal.NotificationServiceExtension"
    android:value="com.onesignal.example.NotificationServiceExtension" />
</application>

---

iOS Notification Service Extension

The UNNotificationServiceExtension allows you to modify the content of push notifications before they are displayed to the user and is required for other important features like:

• Images & Rich Media.
• Confirmed Delivery
• Badges
• Action Buttons
• Influenced Opens with Firebase Analytics

You likely set this up already if you followed our Mobile SDK setup instructions for your app, but this section will explain how to access the OneSignal notification payload data and troubleshoot any issues you might be having.

Getting the iOS push payload

When following the Mobile SDK setup you will get to the section on adding the code to the OneSignalNotificationServiceExtension.

In that code, there is the method OneSignalExtension.didReceiveNotificationExtensionRequest. This is where we pass the bestAttemptContent of the notification to the app before it is displayed to the user. Before this method is called, you can get the notification payload and (if desired) update it before it is displayed to the user.

In this example, we send a notification with the following data:

JSON

{
  "app_id": "YOUR_APP_ID",
  "target_channel": "push",
  "headings": {"en": "The message title"},
  "contents": {"en": "The message contents"},
  "data":{
    "additional_data_key_1":"value_1",
    "additional_data_key_2":"value_2"
    },
  "include_subscription_ids": ["SUBSCRIPTION_ID_1"]
}

We can access this additional data within the OneSignalNotificationServiceExtension via the custom object using the a parameter.

Swift

// Check if `bestAttemptContent` exists
if let bestAttemptContent = bestAttemptContent {

    // Try to retrieve the "custom" data from the notification payload
    if let customData = bestAttemptContent.userInfo["custom"] as? [String: Any],
       let additionalData = customData["a"] as? [String: Any] {

        // Convert the `additionalData` dictionary to a JSON string for logging
        if let jsonData = try? JSONSerialization.data(withJSONObject: additionalData, options: .prettyPrinted),
           let jsonString = String(data: jsonData, encoding: .utf8) {
            // Successfully converted to JSON; log the formatted JSON string
            print("The additionalData dictionary in JSON format:\n\(jsonString)")
        } else {
            // Failed to convert the `additionalData` dictionary to JSON
            print("Failed to convert additionalData to JSON format.")
        }
    }

    // Try to retrieve the "aps" data from the notification payload
    if let messageData = bestAttemptContent.userInfo["aps"] as? [String: Any],
       let apsData = messageData["alert"] as? [String: Any],
       let body = apsData["body"] as? String,  // Extract the "body" of the alert
       let title = apsData["title"] as? String {  // Extract the "title" of the alert
        // Successfully retrieved the body and title; log the values
        print("The message contents is: \(body), message headings is: \(title)")
    } else {
        // Failed to retrieve the "aps" data or its contents
        print("Unable to retrieve apsData")
    }

    // Pass the notification to OneSignal for further processing
    OneSignalExtension.didReceiveNotificationExtensionRequest(self.receivedRequest,
                                                              with: bestAttemptContent,
                                                              withContentHandler: self.contentHandler)
}

Example console output:

The additionalData dictionary in JSON format:
{
  "additional_data_key_1" : "value_1",
  "additional_data_key_2" : "value_2"
}
The message contents is: The message contents, message headings is: The message title

Troubleshooting the iOS Notification Service Extension

This guide is for debugging issues with Images, Action Buttons, or Confirmed Deliveries not showing on iOS mobile apps.

Check your Xcode Settings

In General > Targets make sure your main app target and OneSignalNotificationServiceExtension target have the same and correct “Supported Destinations” and your “Minimum Deployment” is set to iOS 14.5 or higher.

If you are using Cocoapods make sure these match with your main target in the Podfile to avoid build errors.

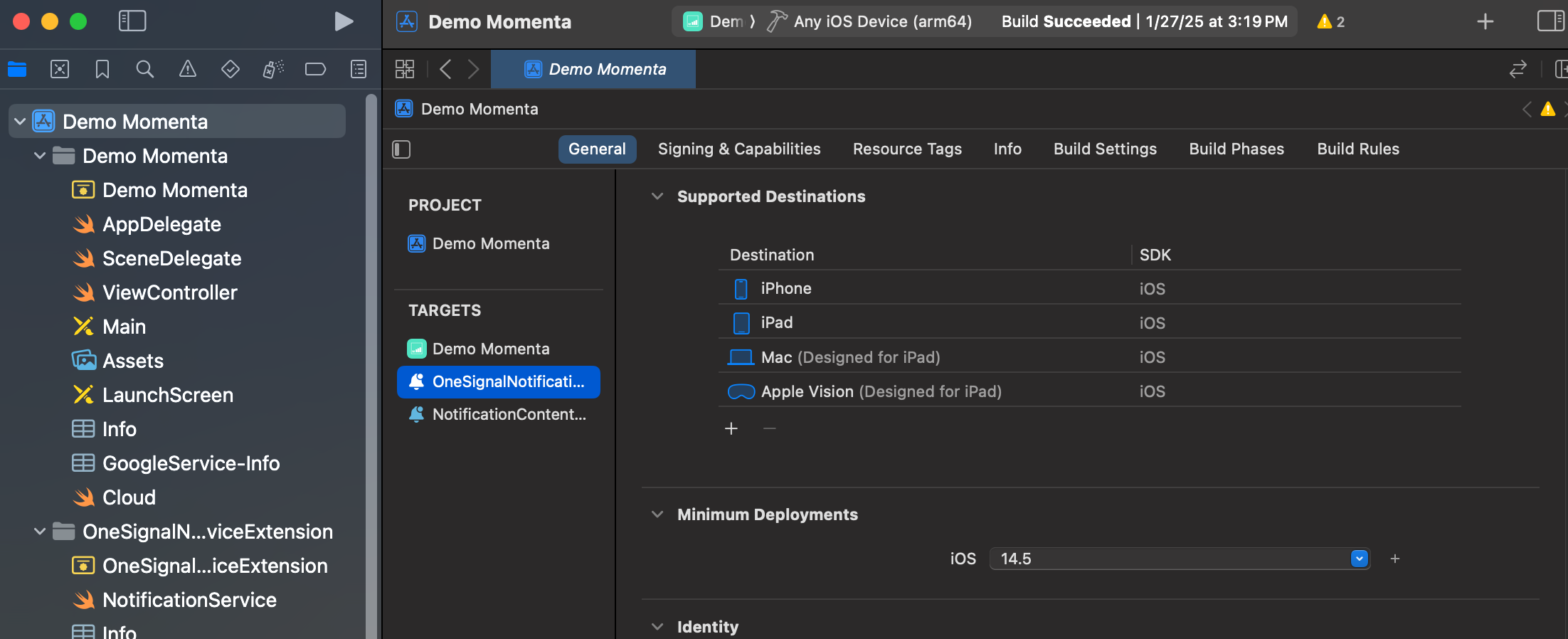

Notification Service Extension configuration in Xcode

Example shows the OneSignalNotificationServiceExtension target with the same Minimum Deployments as iOS 14.

Continuing in the OneSignalNotificationServiceExtension > Info tab, expand the NSExtension key. Ensure you see:

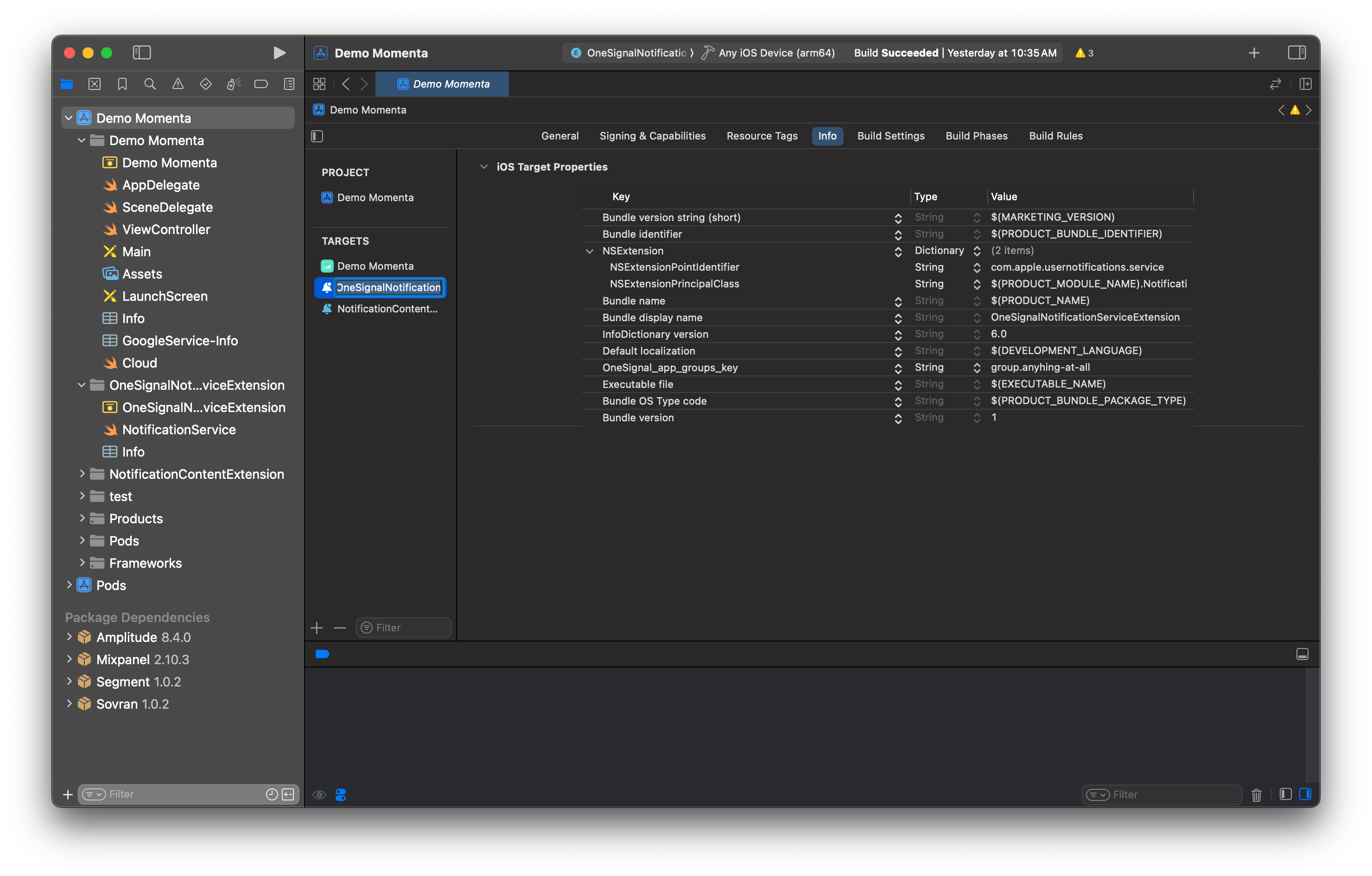

Example viewing the Info tab and not the XML.

Example XML:

XML

 <dict>
   <key>NSExtensionPointIdentifier</key>
   <string>com.apple.usernotifications.service</string>
   <key>NSExtensionPrincipalClass</key>
   <string>$(PRODUCT_MODULE_NAME).NotificationService</string>
 </dict>

If using Objective-C, instead of $(PRODUCT_MODULE_NAME).NotificationService use NotificationService.

Turn off “Copy only when installing”

Select your main app target > Build Phases > Embed App Extensions. Ensure “Copy only when installing” is NOT checked. Uncheck it if it is:

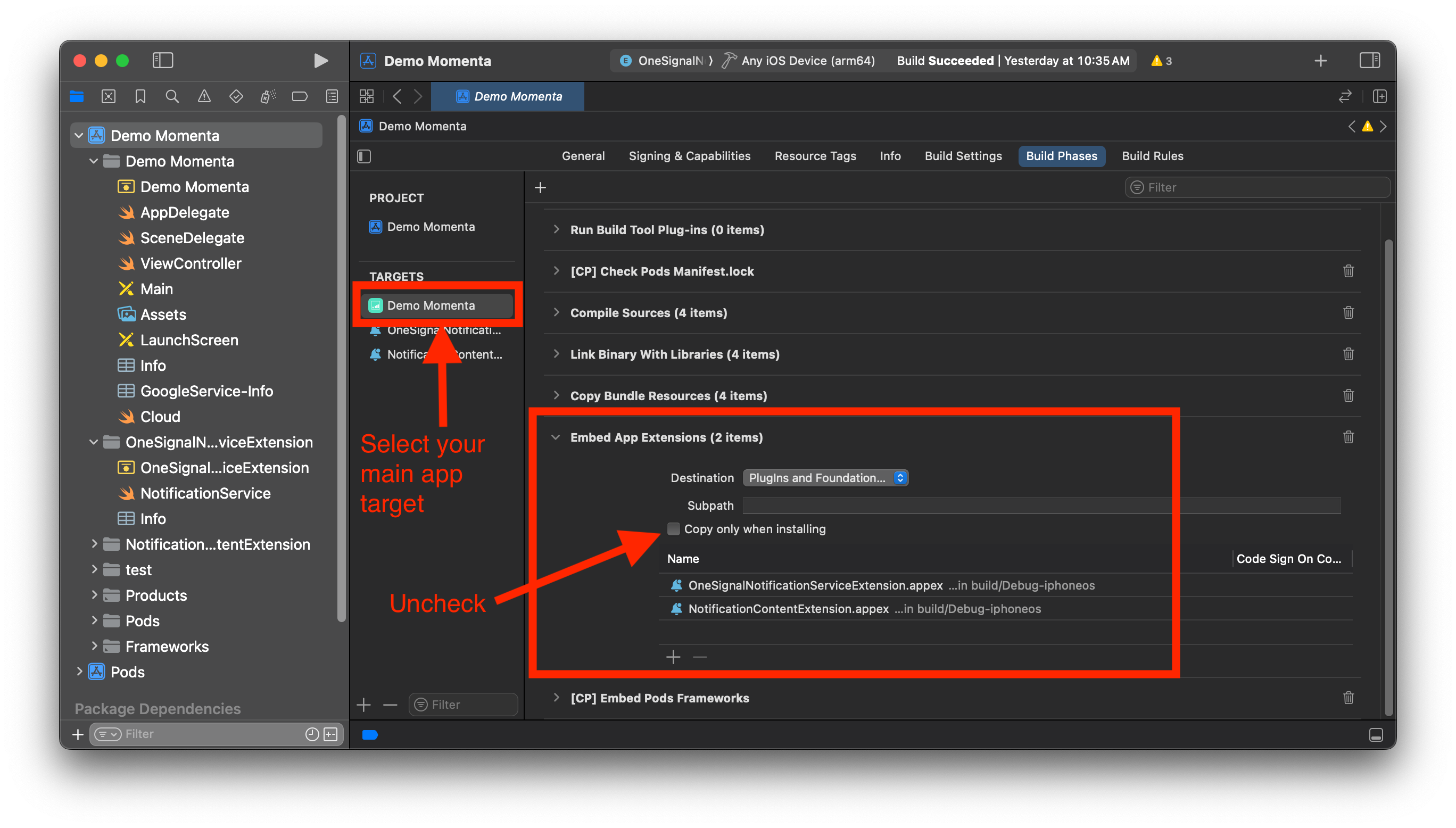

Embed App Extensions build phase settings

How to debug the Notification Service Extension not running

1. Update the OneSignalNotificationServiceExtension code

Open the NotificationService.m or NotificationService.swift and replace the whole file contents with the below code. (The code is the same as our original setup code, just adding some additional logging.

Make sure to replace YOUR_BUNDLE_ID with your actual Bundle ID.

Swift

import UserNotifications
import OneSignalExtension
import os.log

class NotificationService: UNNotificationServiceExtension {

    var contentHandler: ((UNNotificationContent) -> Void)?
    var receivedRequest: UNNotificationRequest!
    var bestAttemptContent: UNMutableNotificationContent?

    override func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) -> Void) {
        self.receivedRequest = request
        self.contentHandler = contentHandler
        self.bestAttemptContent = (request.content.mutableCopy() as? UNMutableNotificationContent)

        let userInfo = request.content.userInfo
        let custom = userInfo["custom"]
        print("Running NotificationServiceExtension: userInfo = \(userInfo.description)")
        print("Running NotificationServiceExtension: custom = \(custom.debugDescription)")
        //debug log types need to be enabled in Console > Action > Include Debug Messages
        os_log("%{public}@", log: OSLog(subsystem: "com.onesignal.OneSignal-Swift-Sample", category: "OneSignalNotificationServiceExtension"), type: OSLogType.debug, userInfo.debugDescription)

        if let bestAttemptContent = bestAttemptContent {
            /* DEBUGGING: Uncomment the 2 lines below to check this extension is executing
                          Note, this extension only runs when mutable-content is set
                          Setting an attachment or action buttons automatically adds this */
            print("Running NotificationServiceExtension")
            bestAttemptContent.body = "[Modified] " + bestAttemptContent.body

            OneSignalExtension.didReceiveNotificationExtensionRequest(self.receivedRequest, with: bestAttemptContent, withContentHandler: self.contentHandler)
        }
    }

    override func serviceExtensionTimeWillExpire() {
        // Called just before the extension will be terminated by the system.
        // Use this as an opportunity to deliver your "best attempt" at modified content, otherwise the original push payload will be used.
        if let contentHandler = contentHandler, let bestAttemptContent =  bestAttemptContent {
            OneSignalExtension.serviceExtensionTimeWillExpireRequest(self.receivedRequest, with: self.bestAttemptContent)
            contentHandler(bestAttemptContent)
        }
    }

}

2. Change your Active Scheme

Set your Active Scheme to the OneSignalNotificationServiceExtension.

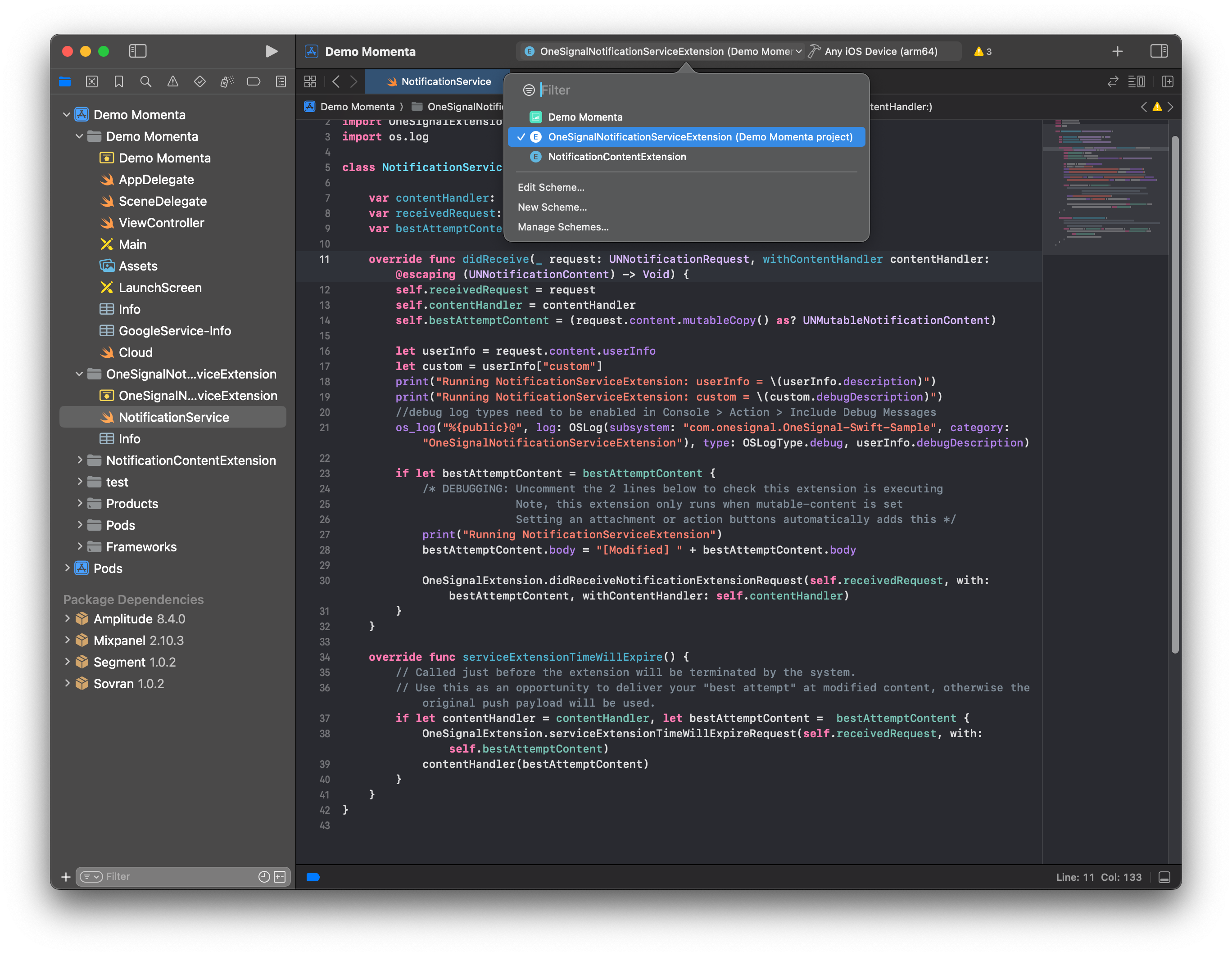

Xcode active scheme selection

3. Build and run the project

Build and run the project in Xcode on a real device.

4. Open the Console

In Xcode, select Window > Devices and Simulators.

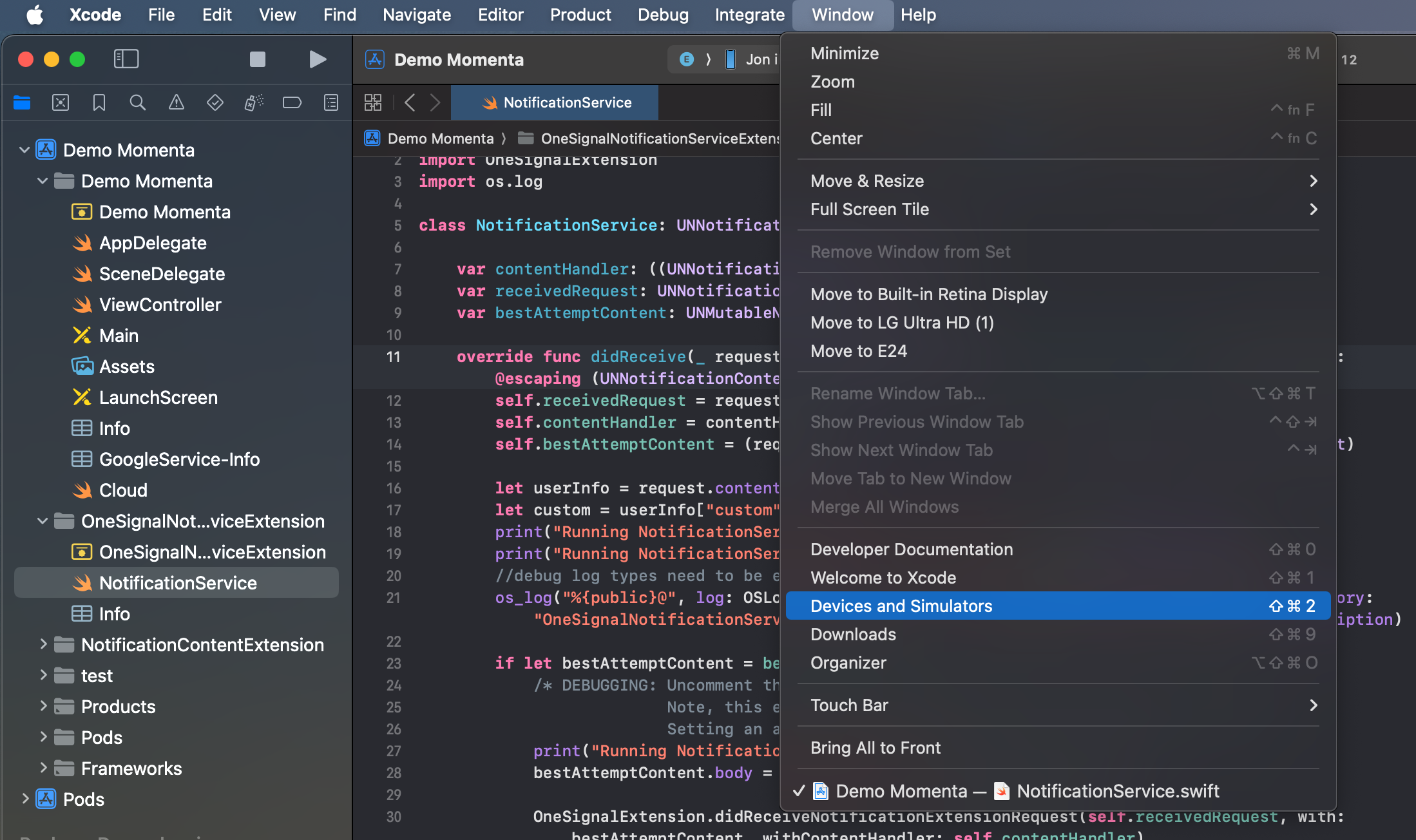

Xcode Devices and Simulators window

You should see your device connected. Select Open Console.

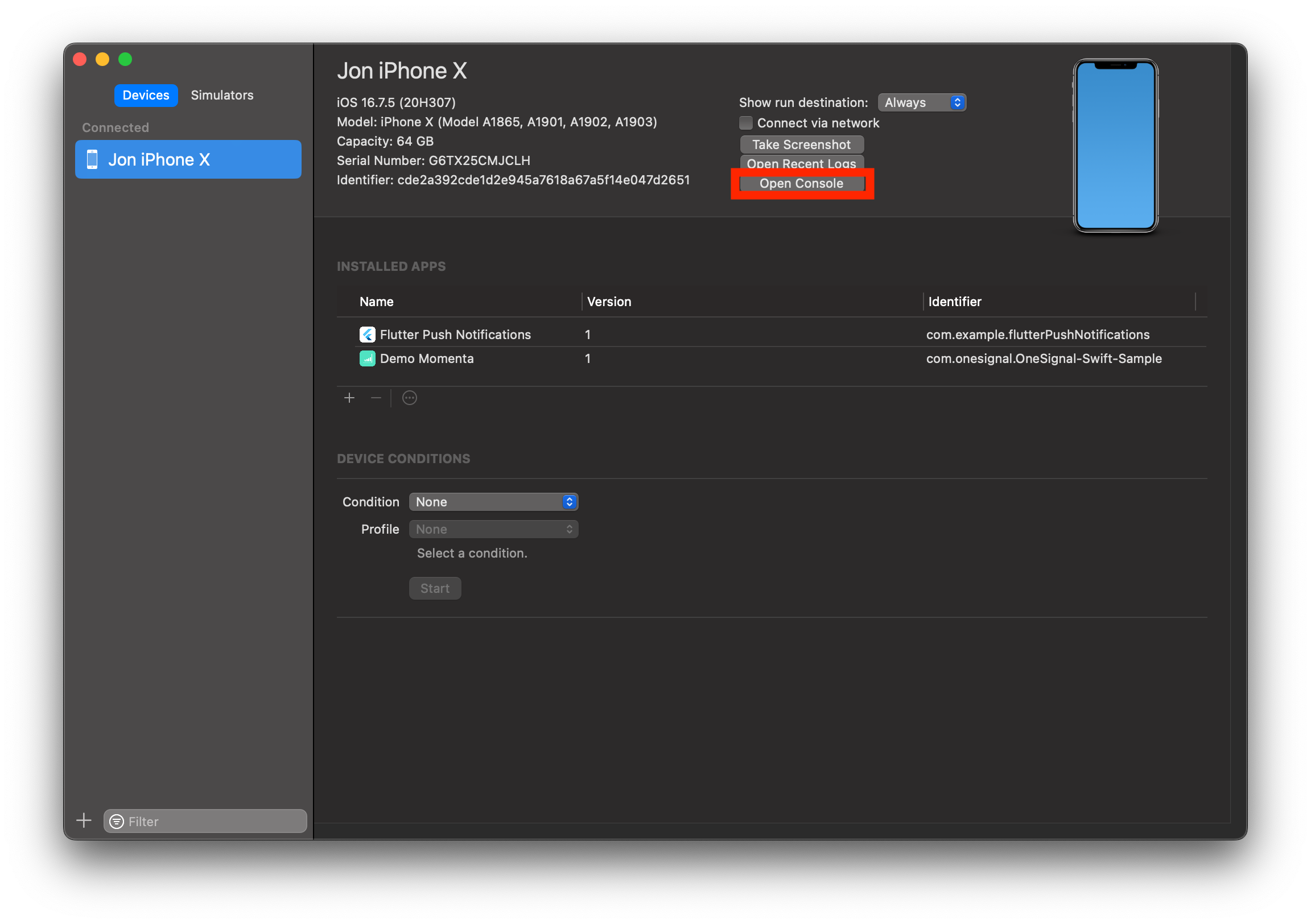

Device console access button

5. Check the Console

In the Console:

• Select Action > Include Debug Messages
• Search for OneSignalNotificationServiceExtension as the CATEGORY
• Select Start

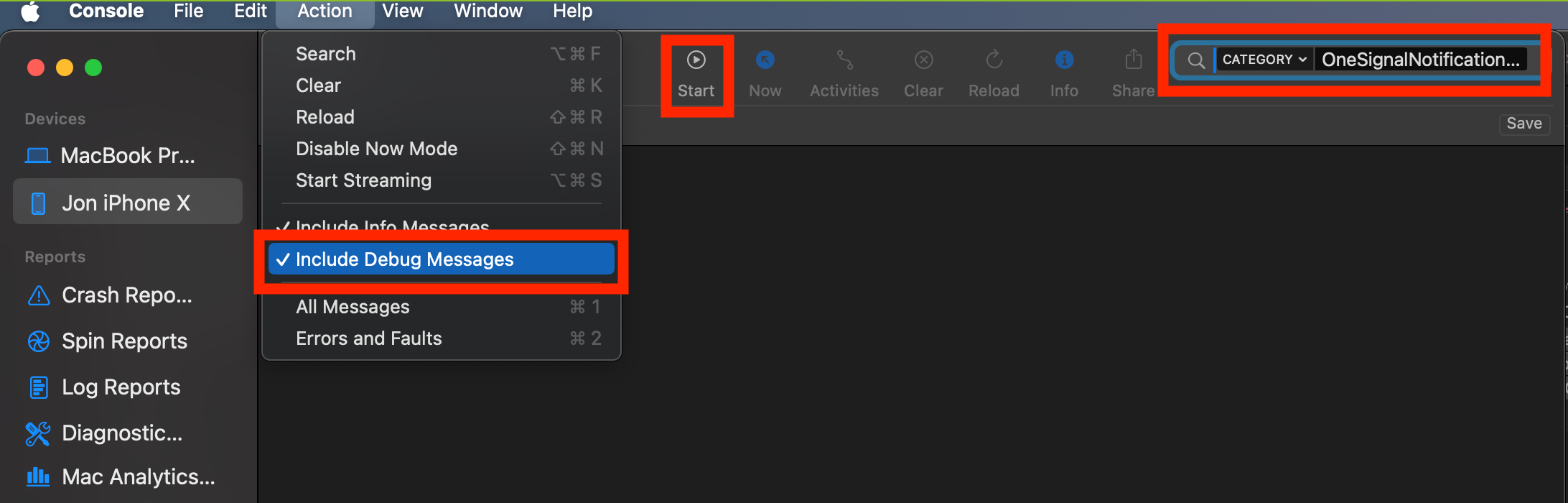

Console debugging configuration

Send this device a notification with a message (use contents property if sending from the Create message API). In this example, the payload is:

cURL

  //Replace with your own app data:
  //YOUR_API_KEY, YOUR_APP_ID, SUBSCRIPTION_ID_1

curl --request POST \
 --url 'https://api.onesignal.com/notifications' \
 --header 'Authorization: Key YOUR_API_KEY' \
 --header 'accept: application/json' \
 --header 'content-type: application/json' \
 --data '
{
"app_id": "YOUR_APP_ID",
"target_channel": "push",
"headings": {"en": "The message title"},
"contents": {"en": "The message contents"},
"data":{"additional_data_key_1":"value_1","additional_data_key_2":"value_2"},
"include_subscription_ids": [
"SUBSCRIPTION_ID_1"
]
}'

You should see a message logged with the app running and not running.

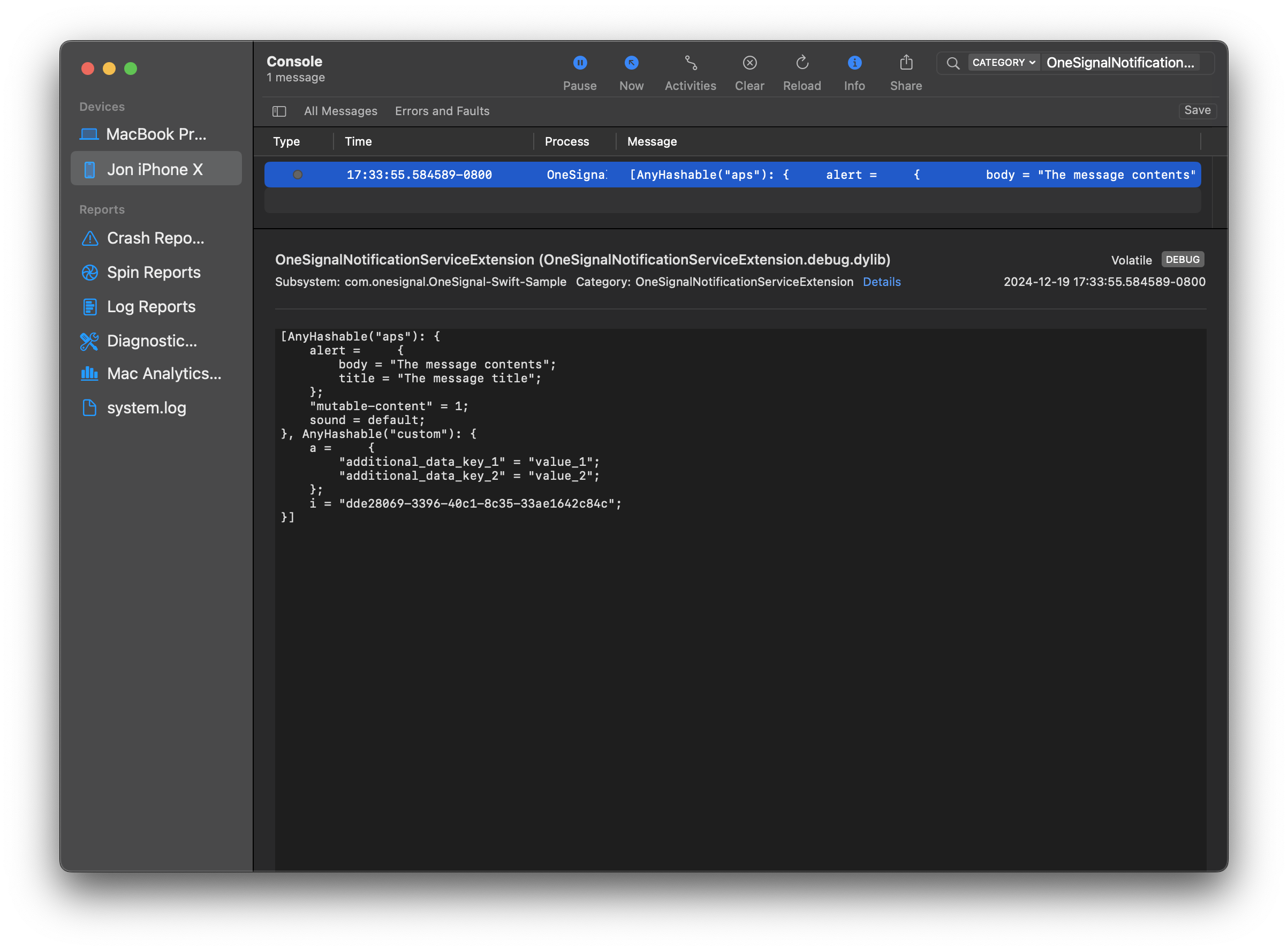

Console debug output example

If you do not see a message, then remove OneSignal from your app and follow our Mobile SDK Setup again to verify you setup OneSignal correctly.

---
